10寸全反显示屏
10寸全反显示屏
10寸全反显示屏
  • 10寸全反显示屏
  • 10寸全反显示屏
  • 10寸全反显示屏
10寸全反显示屏
Features:
产品型号:10寸1200*1600全反显示屏
产品尺寸:10寸
产品类型:TFT

Service Hotline:+86-755-36653030

Product Details

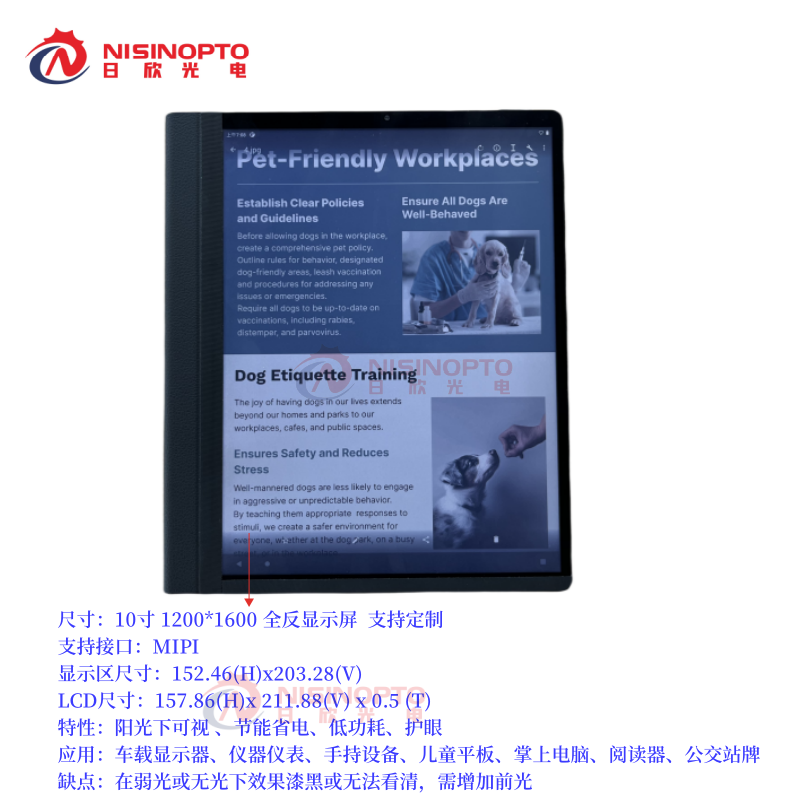

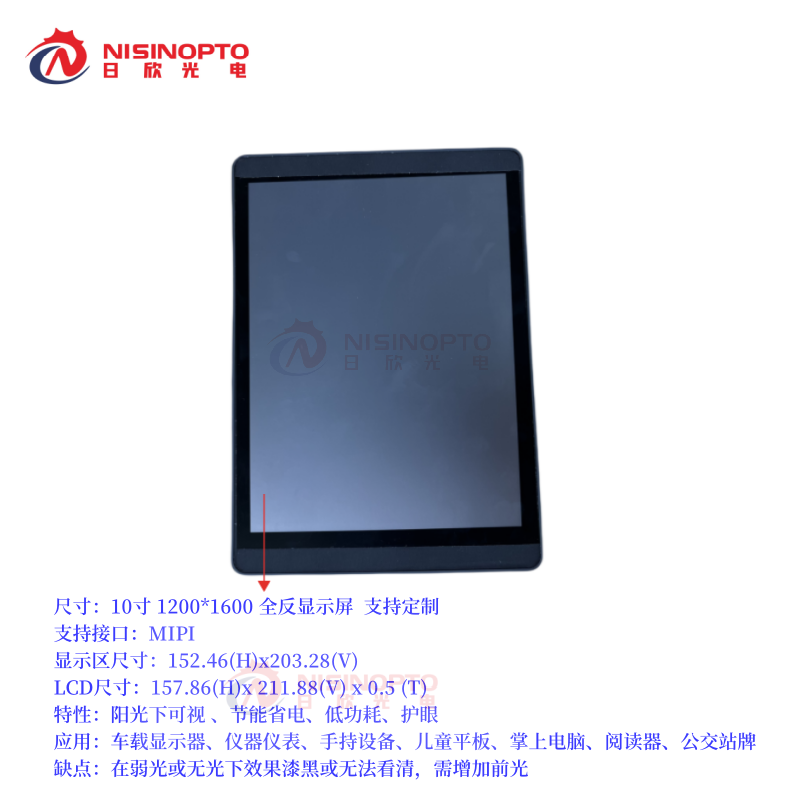

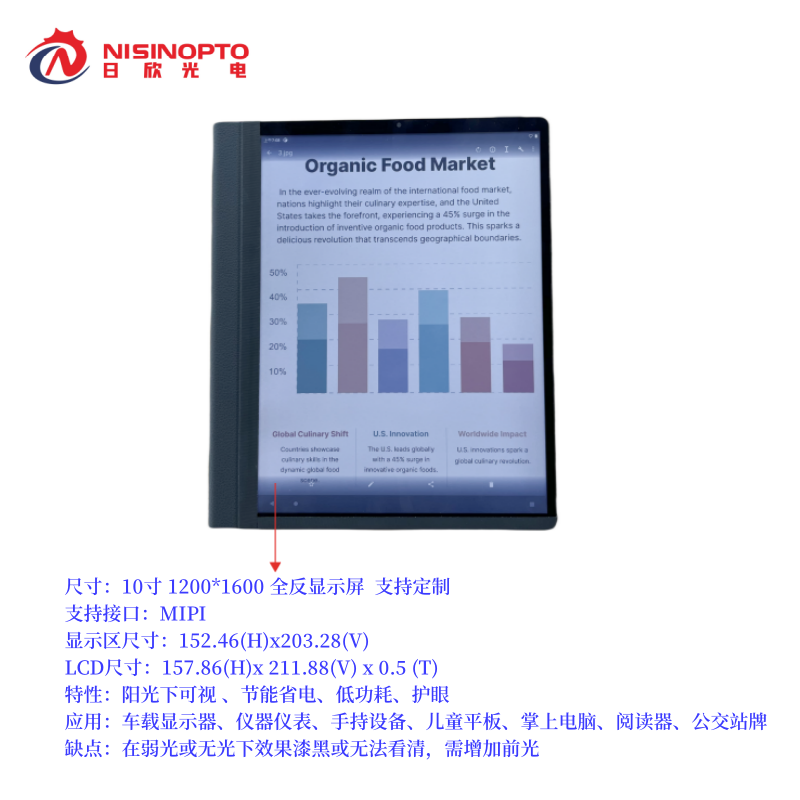

10寸全反显示屏 尺寸 Size 10 inch Refective screen
分辨率 Resolution 1200*1600
支持接口 Interface Type MIPI
显示区尺寸 Display Area 152.46*203.28(mm)
LCD 外型尺寸 LCD Dimensions 157.86*211.88*0.5(mm)
像素间距 Pixel Pitch 0.12705(H)*0.12705(V)mm
显示色彩 Color 16.7M color by 8 bit R.G.B. signal input
响应时间 Response Time 5ms
反射率 White Reflectance 20.00%
工作温度 Operating temperature -20℃~+70℃
储存温度 Storage temperature -30℃~+80℃
是否支持定制 Customisation Yes
