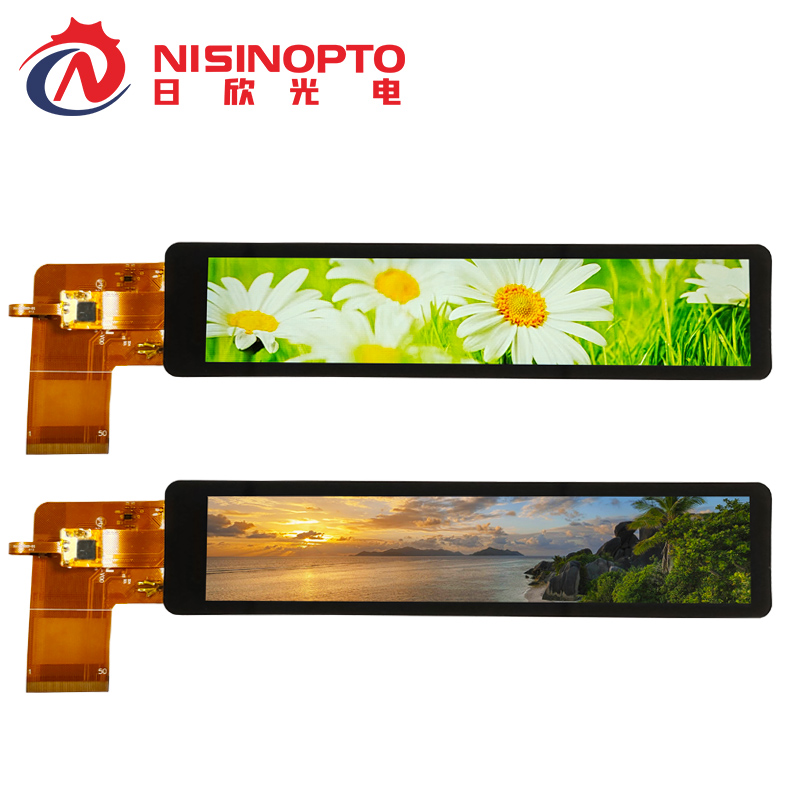

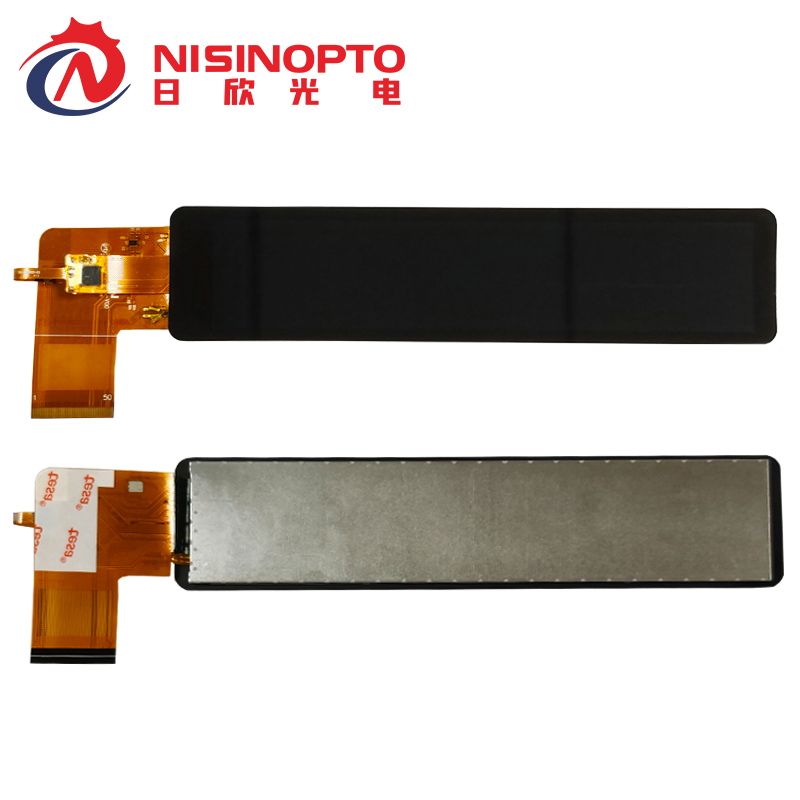

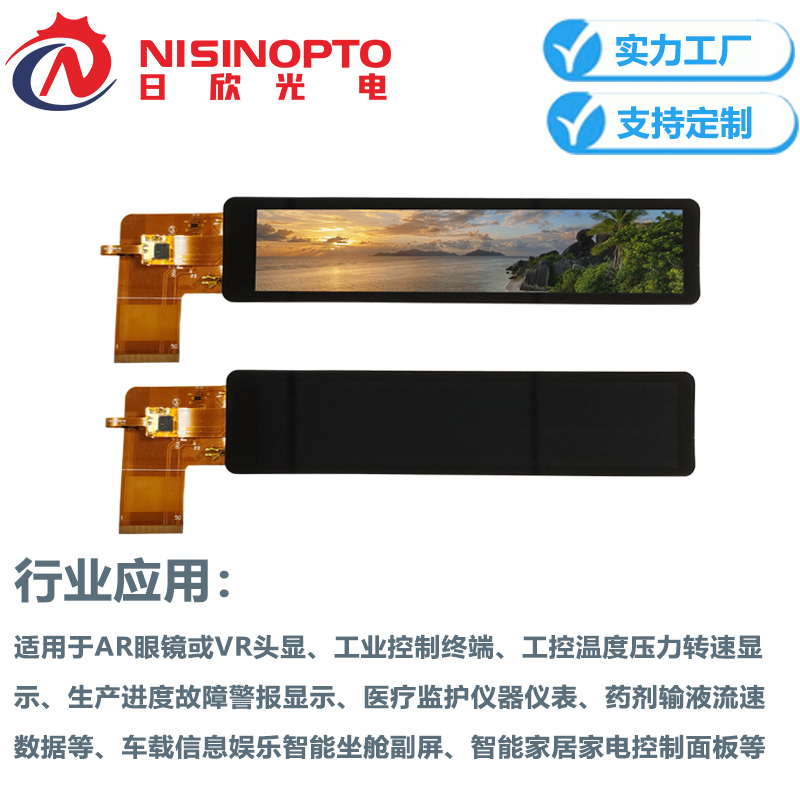

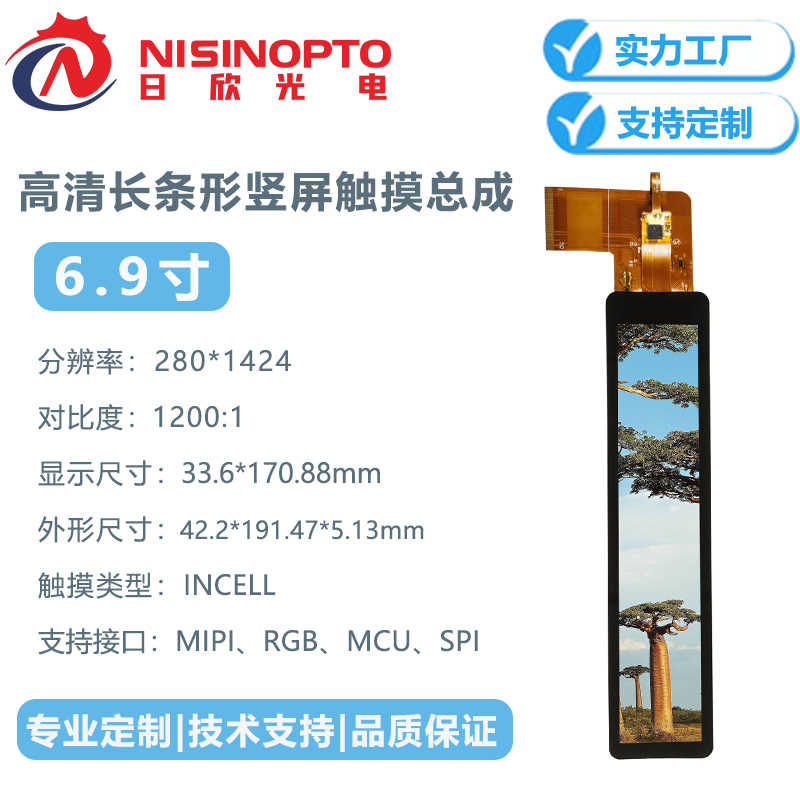

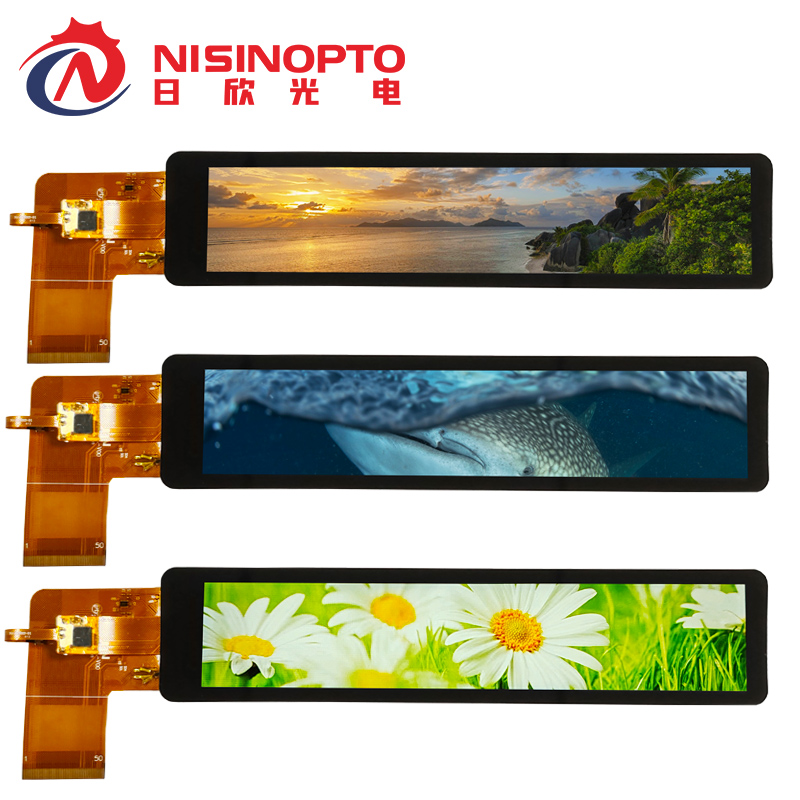

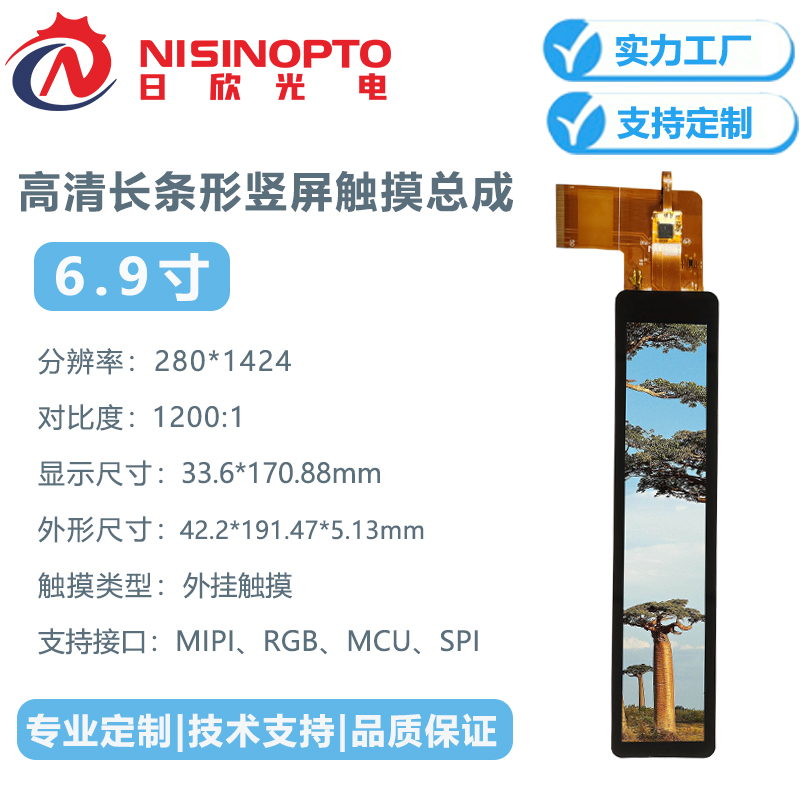

| 6.9寸 280*1424 长条竖屏触摸总成 | 分辨率 | Resolution | 280*1424 |
| 支持接口 | Interface Type | MIPI、RGB、MCU、SPI | |
| 显示区尺寸 | Display Area | 33.6*170.88mm | |

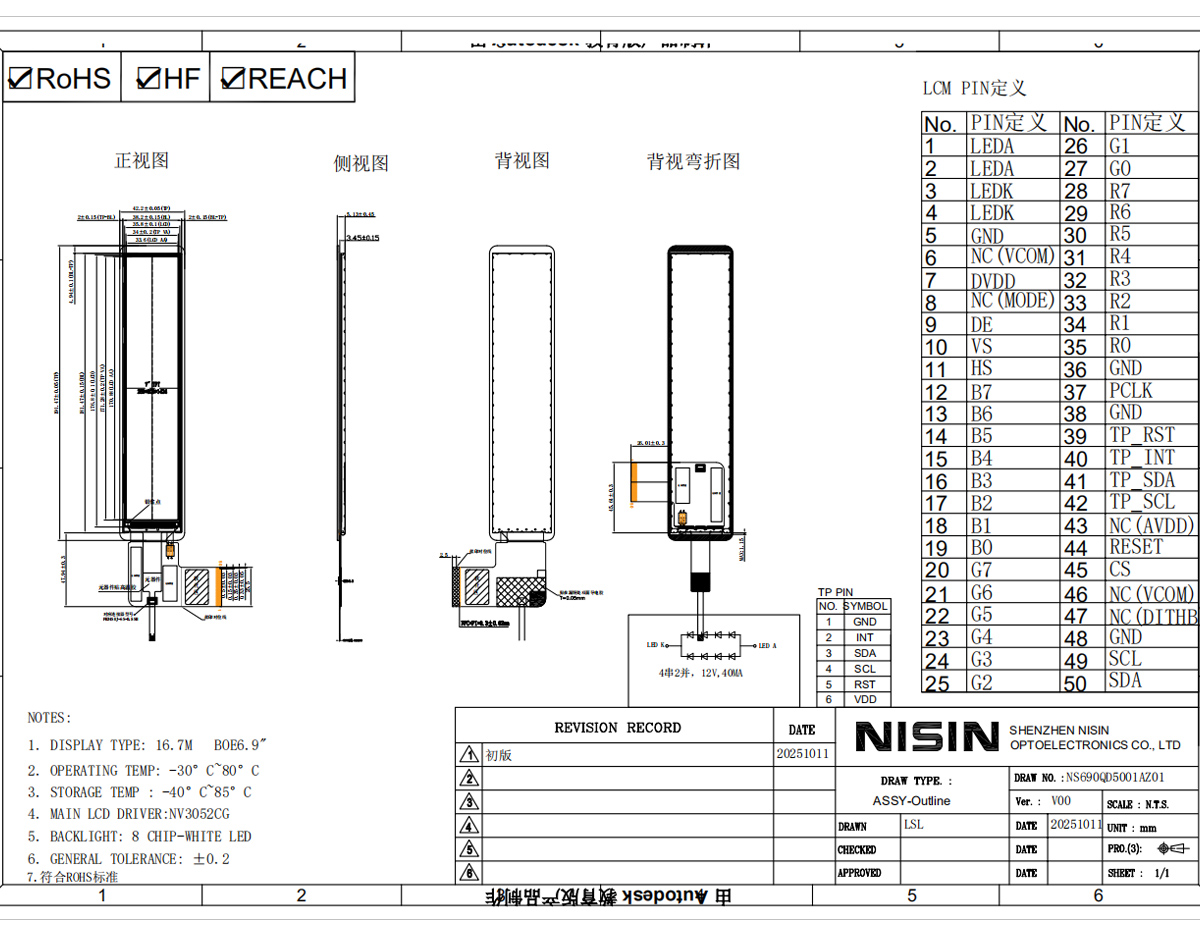

| LCM外形尺寸 | LCM Dimensions | 38.2*181.47*3.45mm | |
| 总成外形尺寸 | LCM Dimensions | 42.2*191.47*5.13mm | |
| 显示点间距 | Dot Pitch | 0.040(H)×3×0.120(V) mm | |
| 显示色彩 | Color | 16.7M colors | |
| 对比度 | Contrast Ratio | 1200/1 | |
| 响应时间 | Response Time | 35ms | |
| 模组亮度 | Brightness | 500cd/m² | |
| 产品类型 | Product Type | TFT | |
| 显示类型 | Display Type | normally balck | |
| 视角 | View Angle | IPS | |
| 工作温度 | Operating Temperature | -20℃~+70℃ | |
| 储存温度 | Storage Temperature | -30℃~+80℃ | |
| 是否支持定制 | Customization | Yes |
