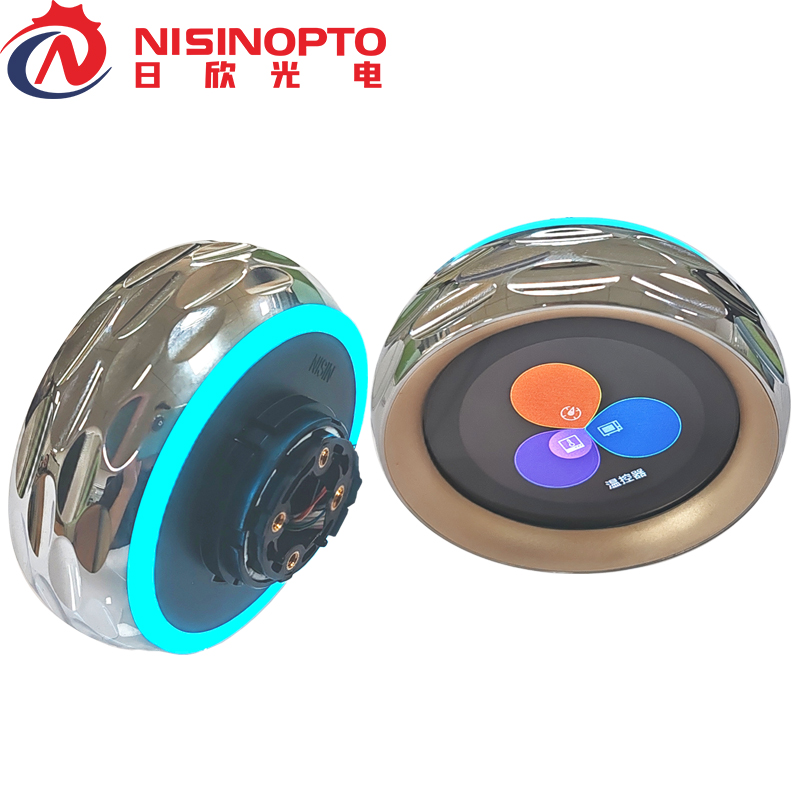

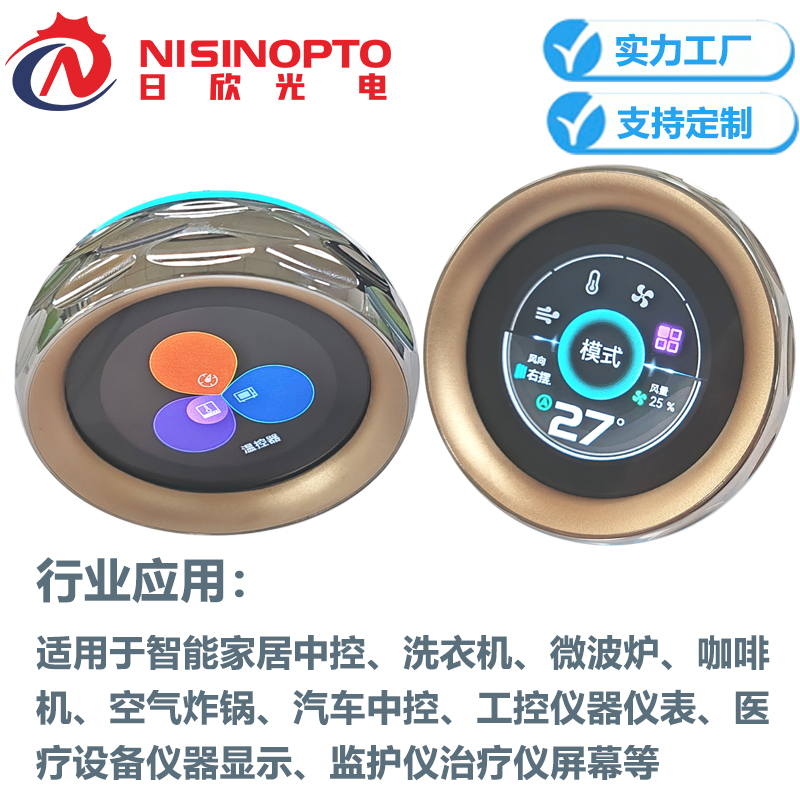

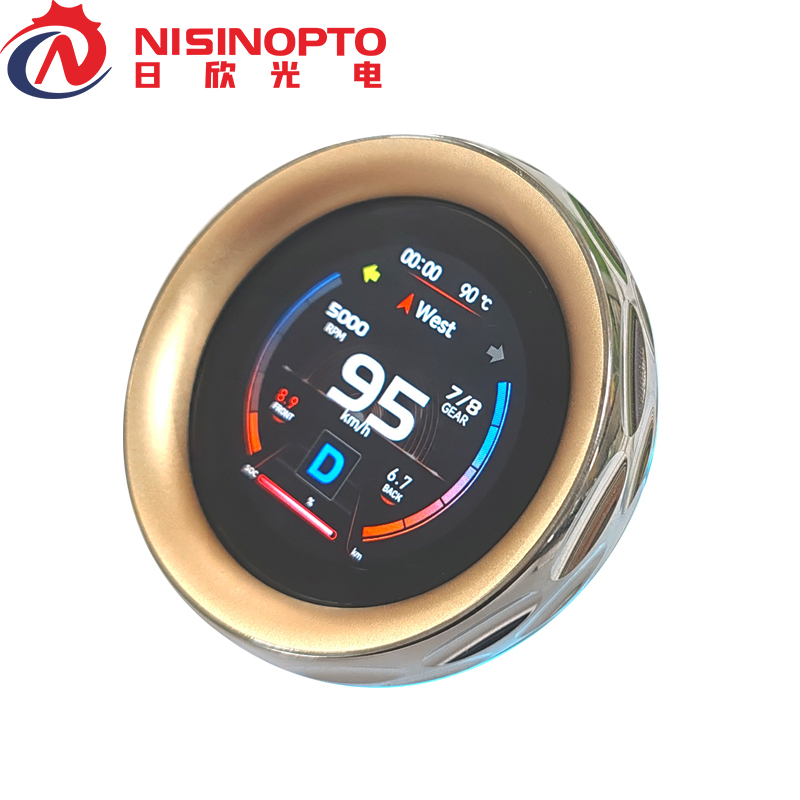

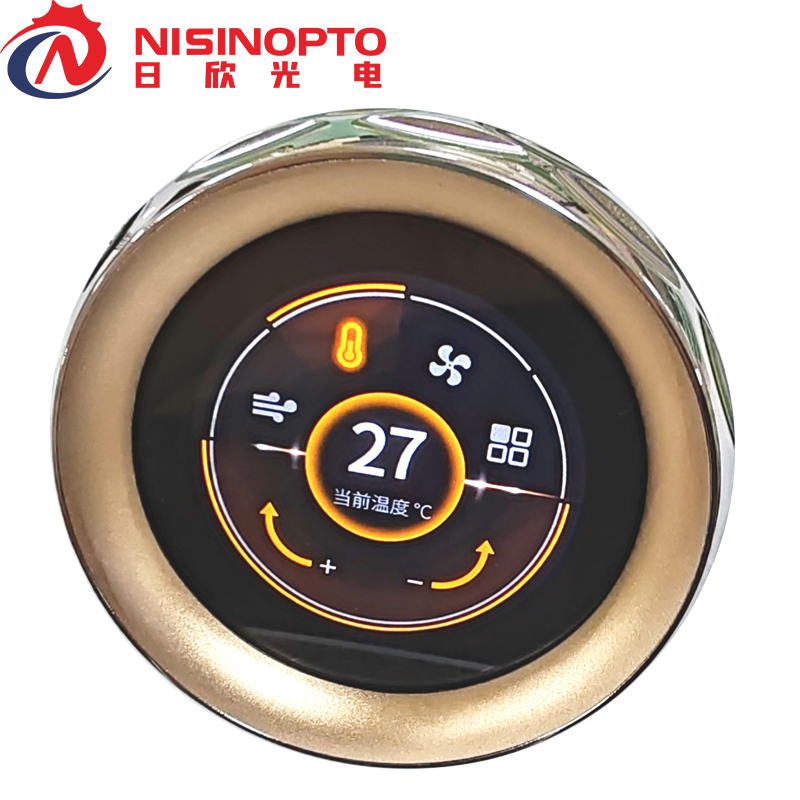

| 1.65寸 360*360 全金属高端定制旋钮 | 尺寸 | SIZE | 1.65寸 TFT |
| 分辨率 | Resolution | 360*360 | |
| 显示区尺寸 | Display Area | 40.24*40.24mm | |

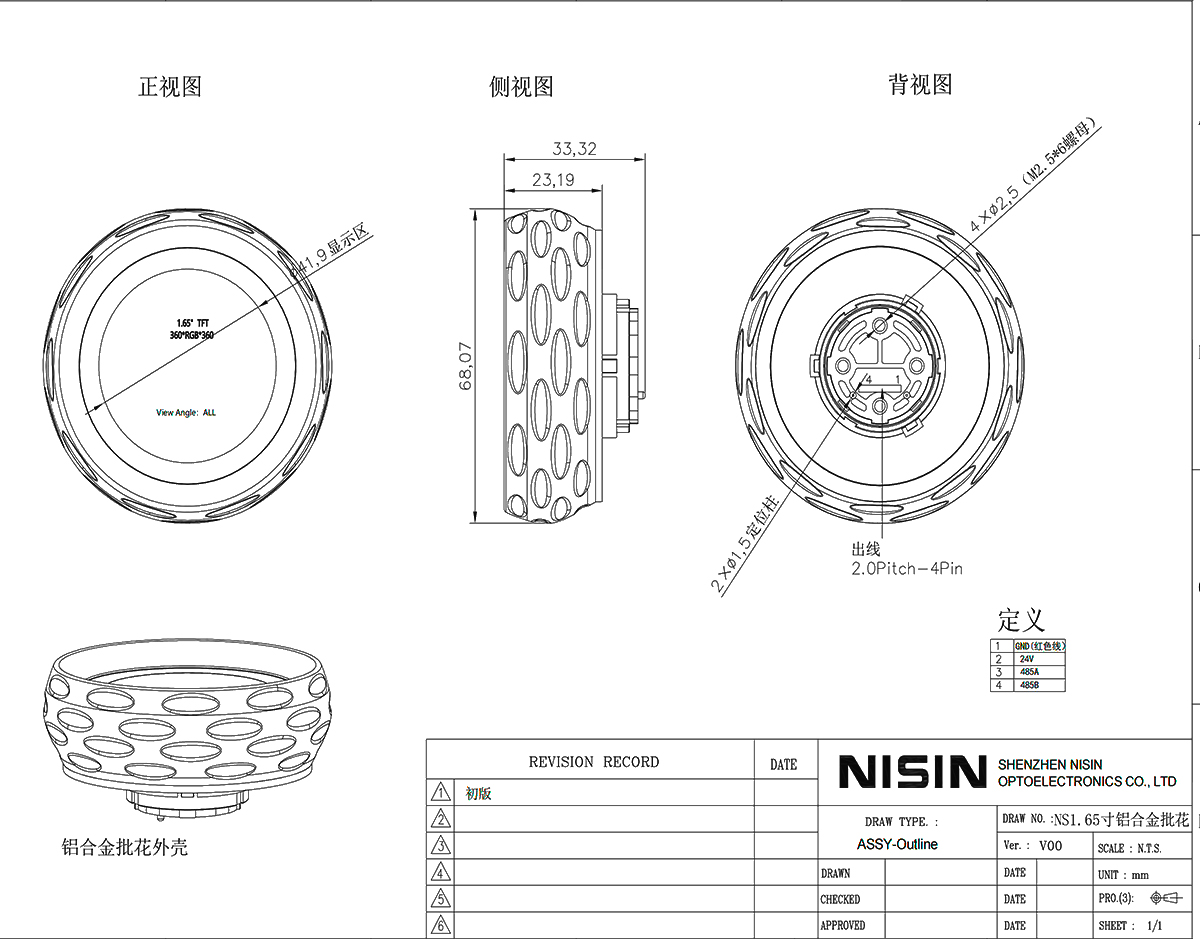

| 产品外形尺寸 | LCM Dimensions | 68.07*33.32mm | |
| 串口方式 | Interface | TTL UART | |

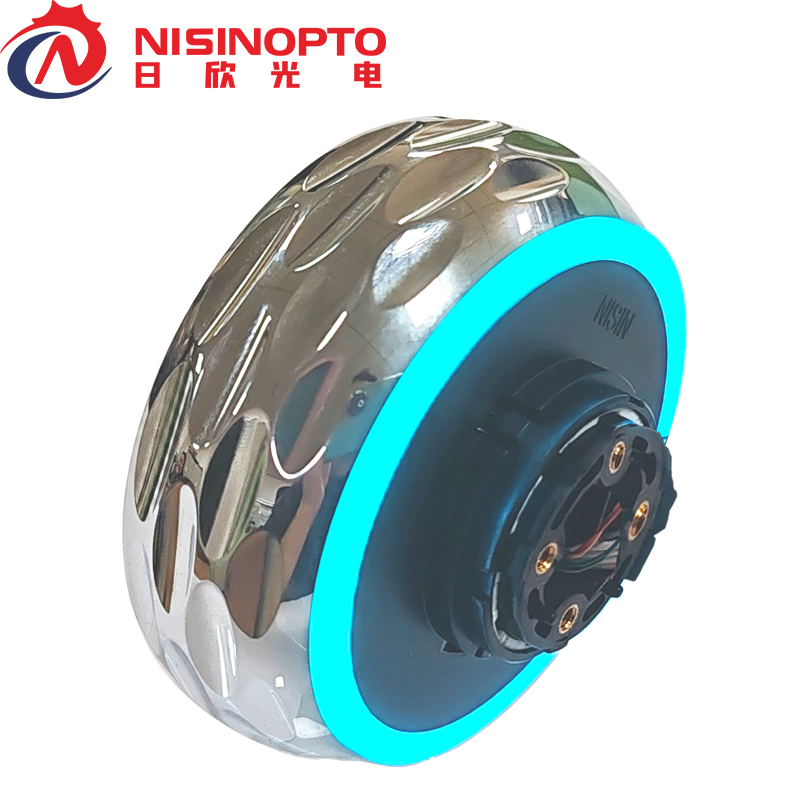

| 用户接口 | User Interface | 4Pin端子线 | |

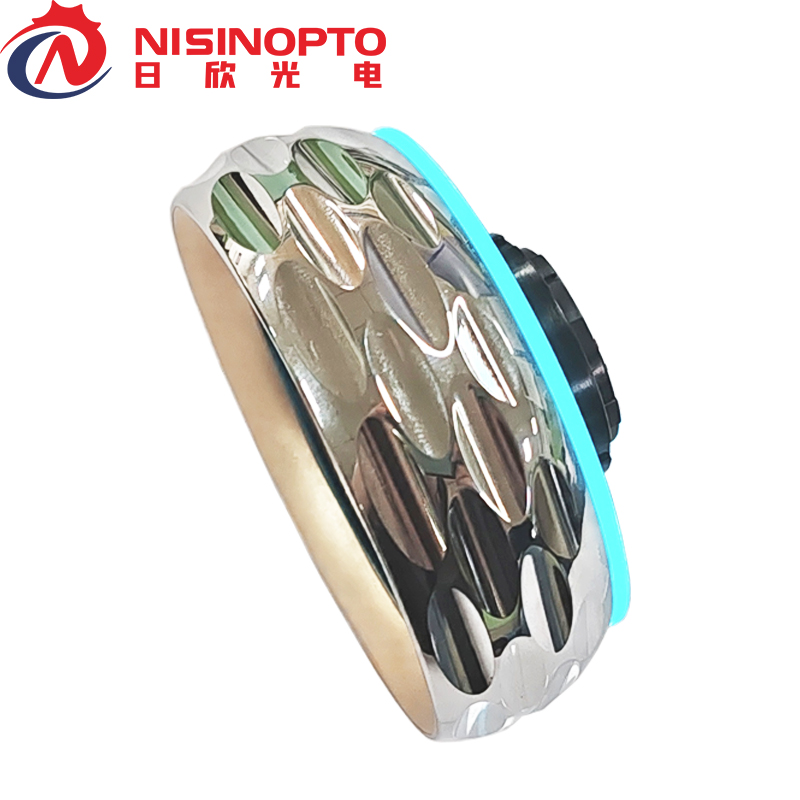

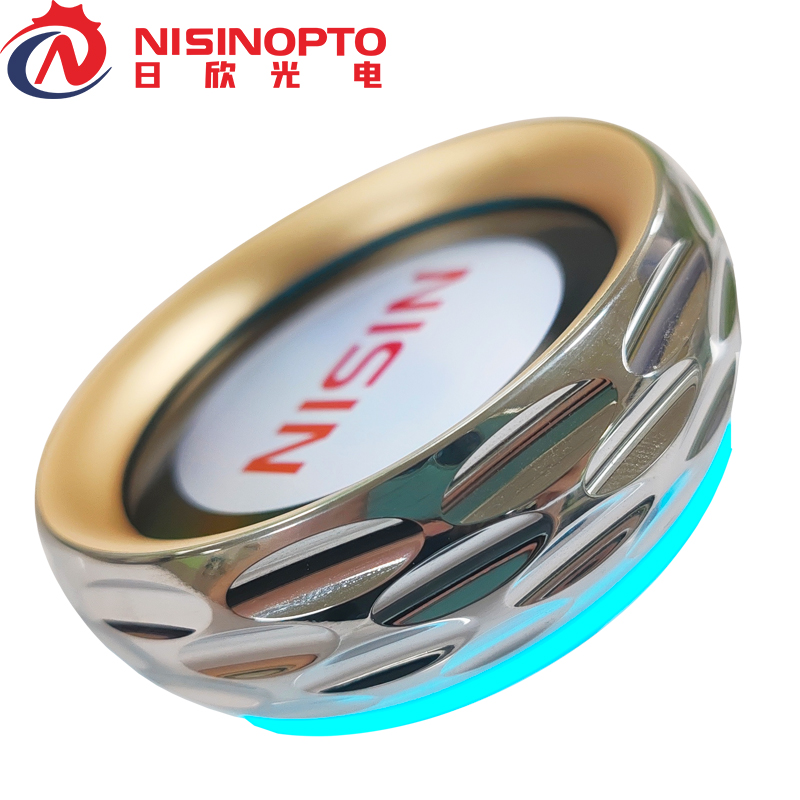

| 外壳材质 | Shell Material | 铝合金金属 | |
| 外壳颜色 | Shell color | 银色 | |
| 功能选择 | Feature Selection | 旋钮+按压 | |
| 触摸类型 | Touch Type | 可定制 | |
| 显示点间距 | Dot Pitch | 0.1164*0.1164mm | |
| 显示色彩 | Color | 262K | |
| 对比度 | Contrast Ratio | 1000:1 | |
| 响应时间 | Response Time | 35ms | |
| 亮度 | Brightness | 350cd/m² | |
| 视角 | View Angle | 全视角 | |
| 工作温度 | Operating temperature | -20℃~+70℃ | |
| 储存温度 | Storage Temperature | -30℃~+80℃ | |
| UI平台 | UI Platform | LeveTop | |
| 是否支持定制 | customization | 是,软件, |
