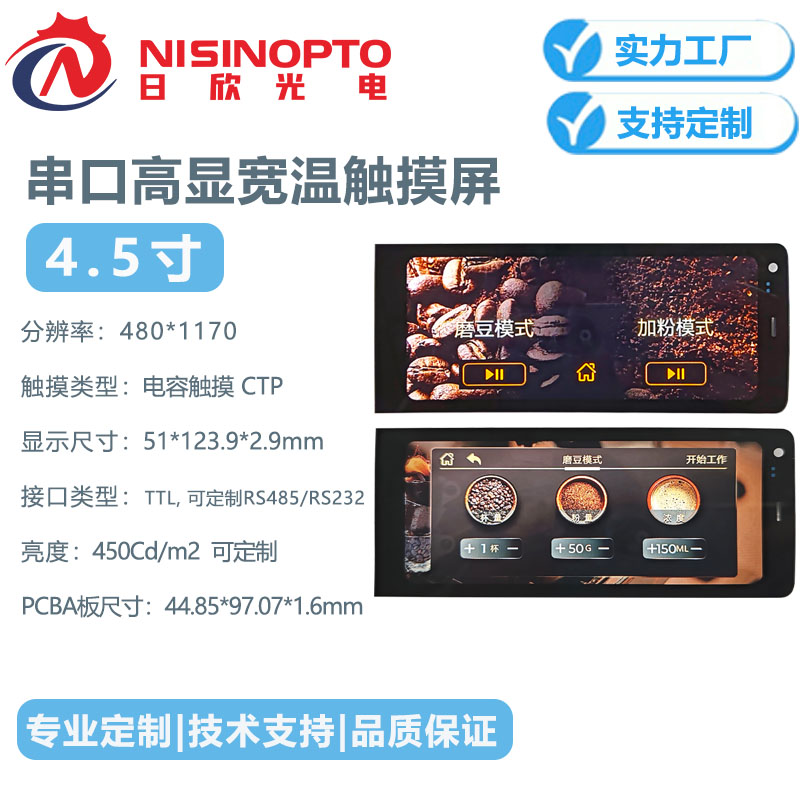

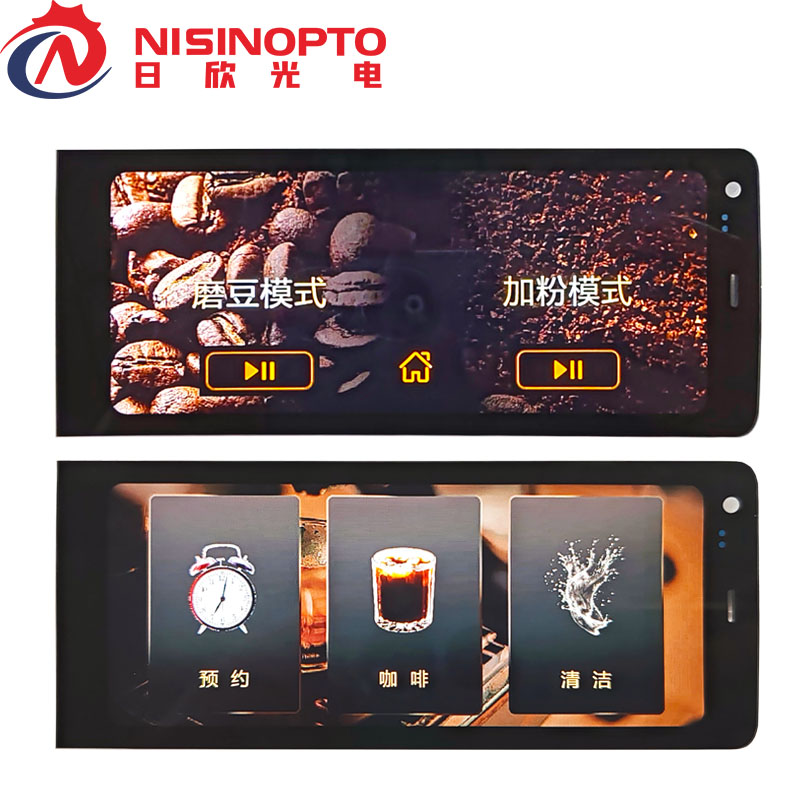

4.5寸 触摸串口屏 480*1170 修长款高分辨率 显示清晰细腻 |

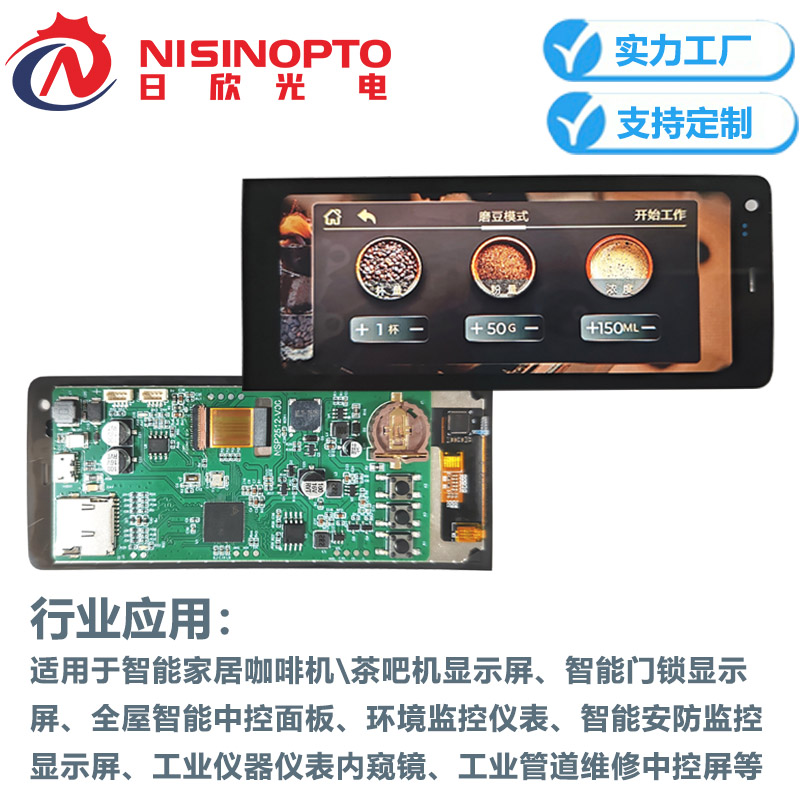

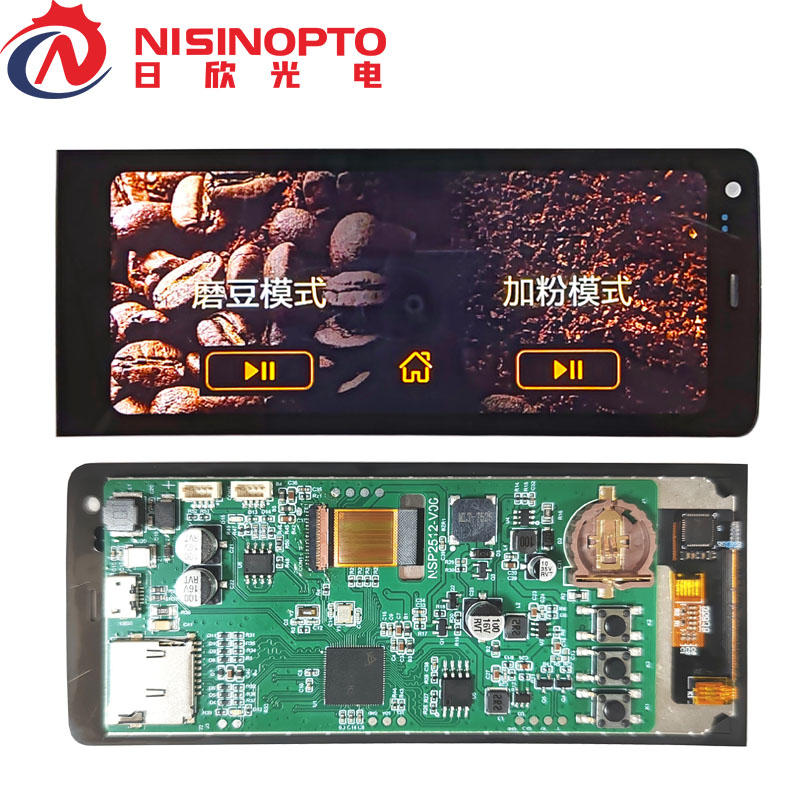

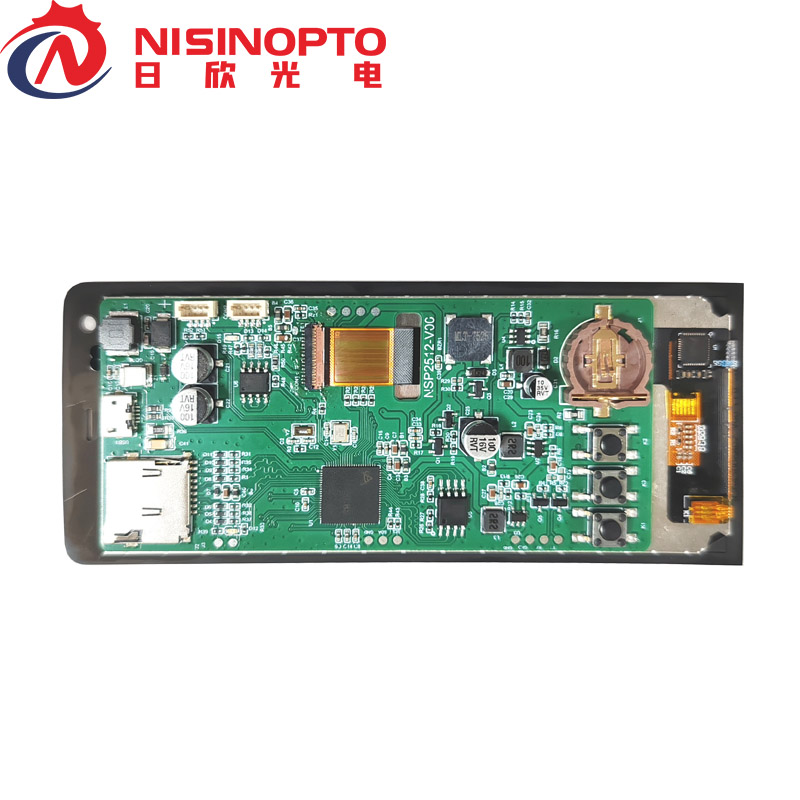

PCBA板尺寸 | PCBA Outside Dimensions | 44.85*97.07*1.6mm |
触摸屏尺寸 | Touch screen size | 51*123.9*2.9mm | |
活动区域尺寸 | Active Area | 43.2*105.3mm | |
分辨率 | Resolution | 480*1170 | |
触摸类型 | Touch Type | 电容触摸 CTP | |
显示色彩 | color | 16.7M | |
接口类型 | Interface Type | TTL, 可定制RS485/RS232 | |
输入电压 | Input Voltage | 5V | |
视角 | Viewing direction | IPS | |
亮度 | brightness | 450Cd/m2 可定制 | |
工作温度 | Operating temperature | -20℃~+70℃ | |
储存温度 | Storage temperature | -30℃~+80℃ | |
是否支持定制 | customization | Yes |
