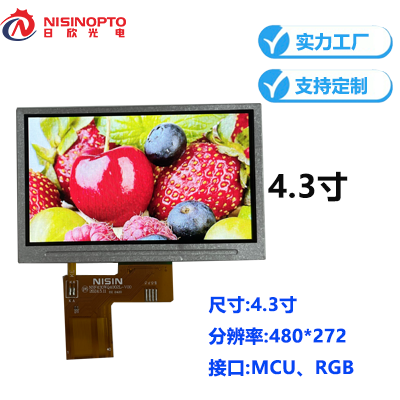

4.3寸外挂TP TFT CTP480*272 |
分辨率 | Resolution | 480*272 |
| 支持接口 | Interface Type | MCU、RGB | |
| 显示区尺寸 | Display area | 95.04*53.86(mm) | |
| LCM外形尺寸 | LCM Dimensions | 105.5*67.1*2.95(mm) | |
| 显示点间距 | Dot Pitch | 66*198(mm) | |
| 显示色彩 | Color | 16.7M | |
| 对比度 | Contrast Ratio | 800:1000 | |
| 响应时间 | Response time | 30MS | |
| 亮度 | Brightness | 300cd/m²(MIN) | |
| 产品类型 | Product type | CTP Module | |
| 显示类型 | Display Type | Normal Black | |
| 视角 | View Angle | U/D/L/R: 80/80/80/80 | |
| 触摸类型 | TP Type | TP | |
| 工作温度 | Operating temperature | -20℃~+70℃ | |
| 储存温度 | Storage temperature | -30℃~+80℃ | |
| 是否支持定制 | Customisation | Yes |
