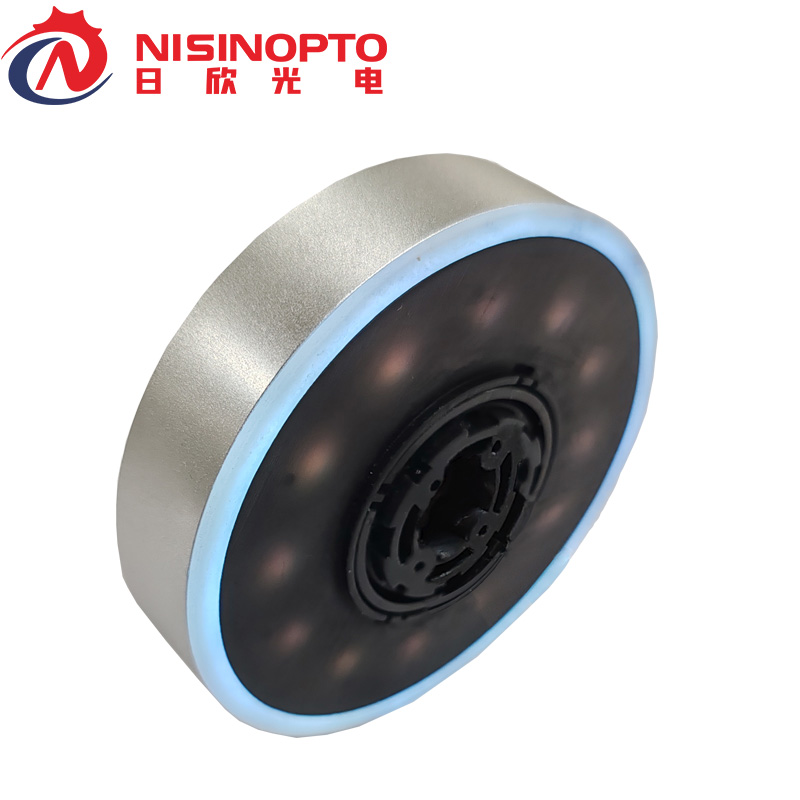

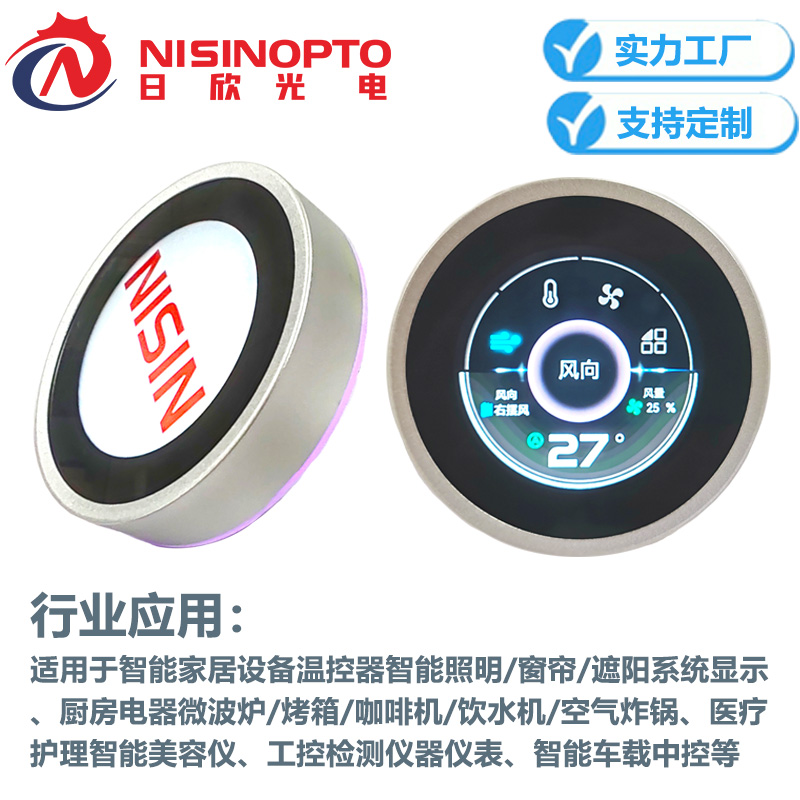

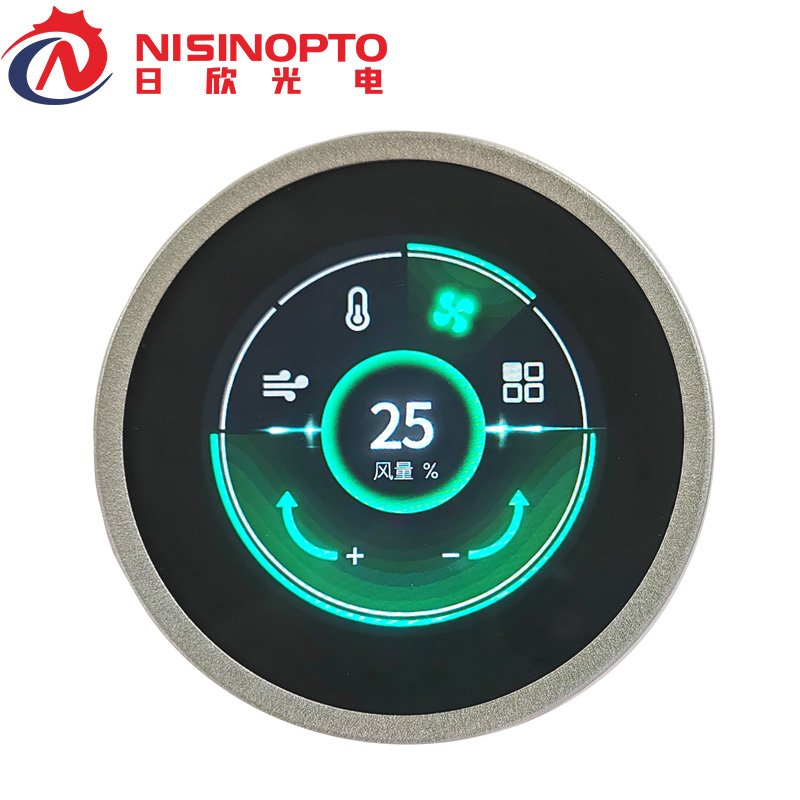

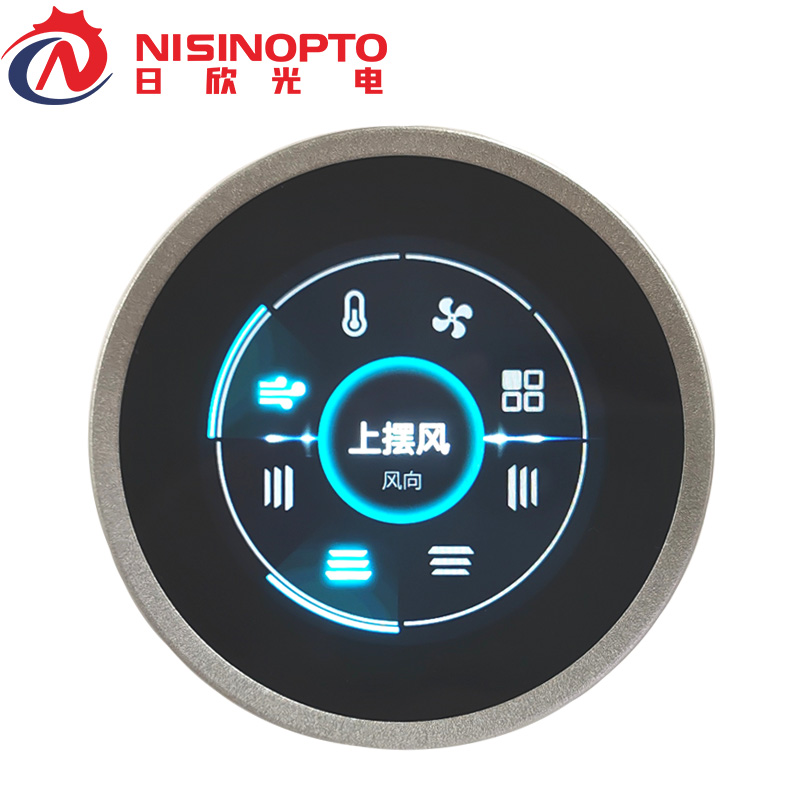

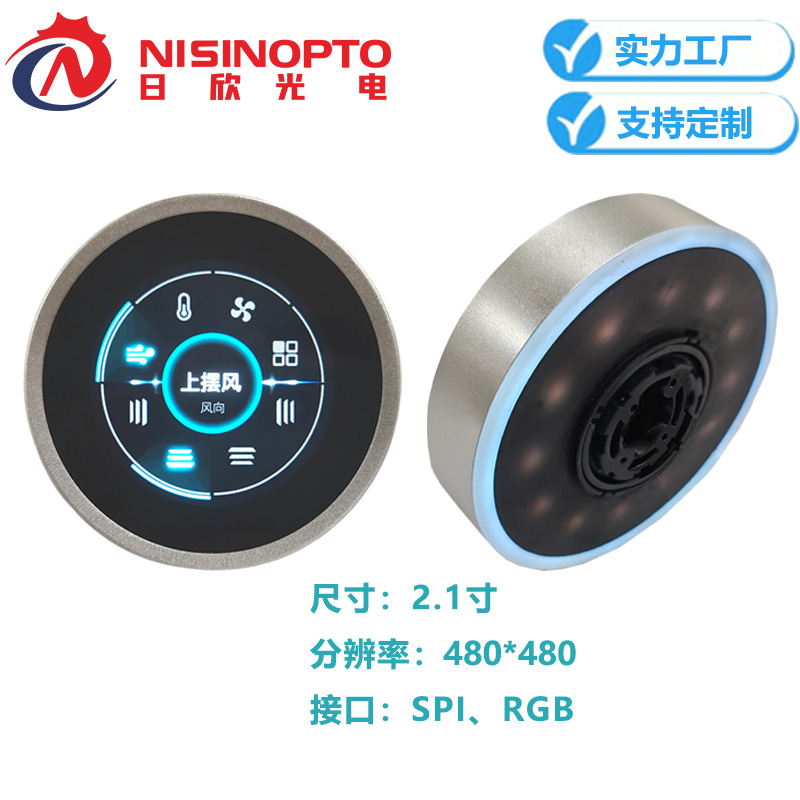

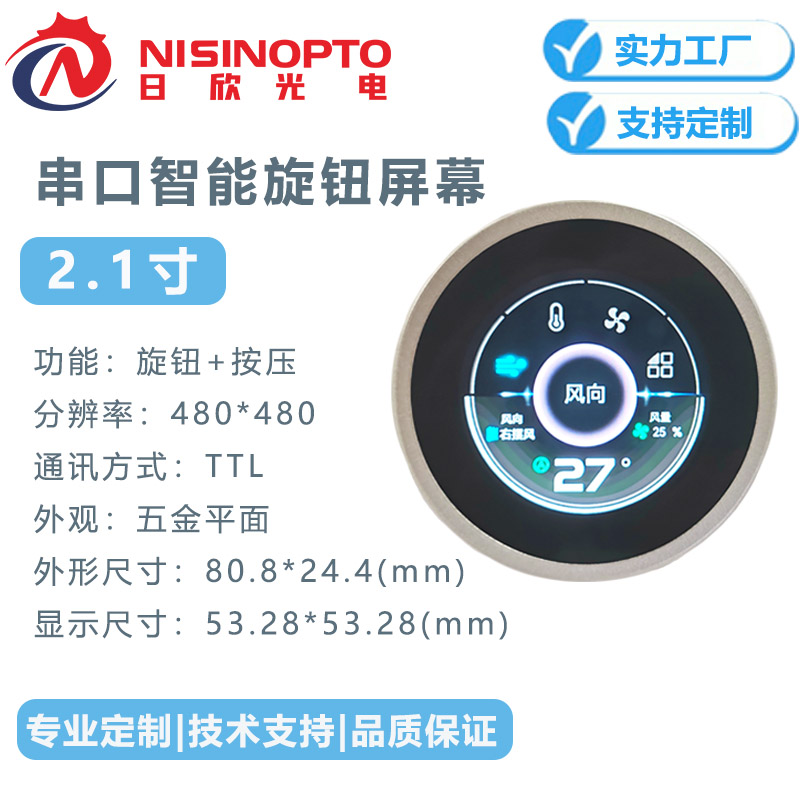

2.1寸 480*480 智能旋钮按压屏 |
分辨率 | Resolution | 480*480 |
接口类型 | Interface Type | SPI 、RGB | |
显示区尺寸 | Display Area | 53.28*53.28(mm) | |

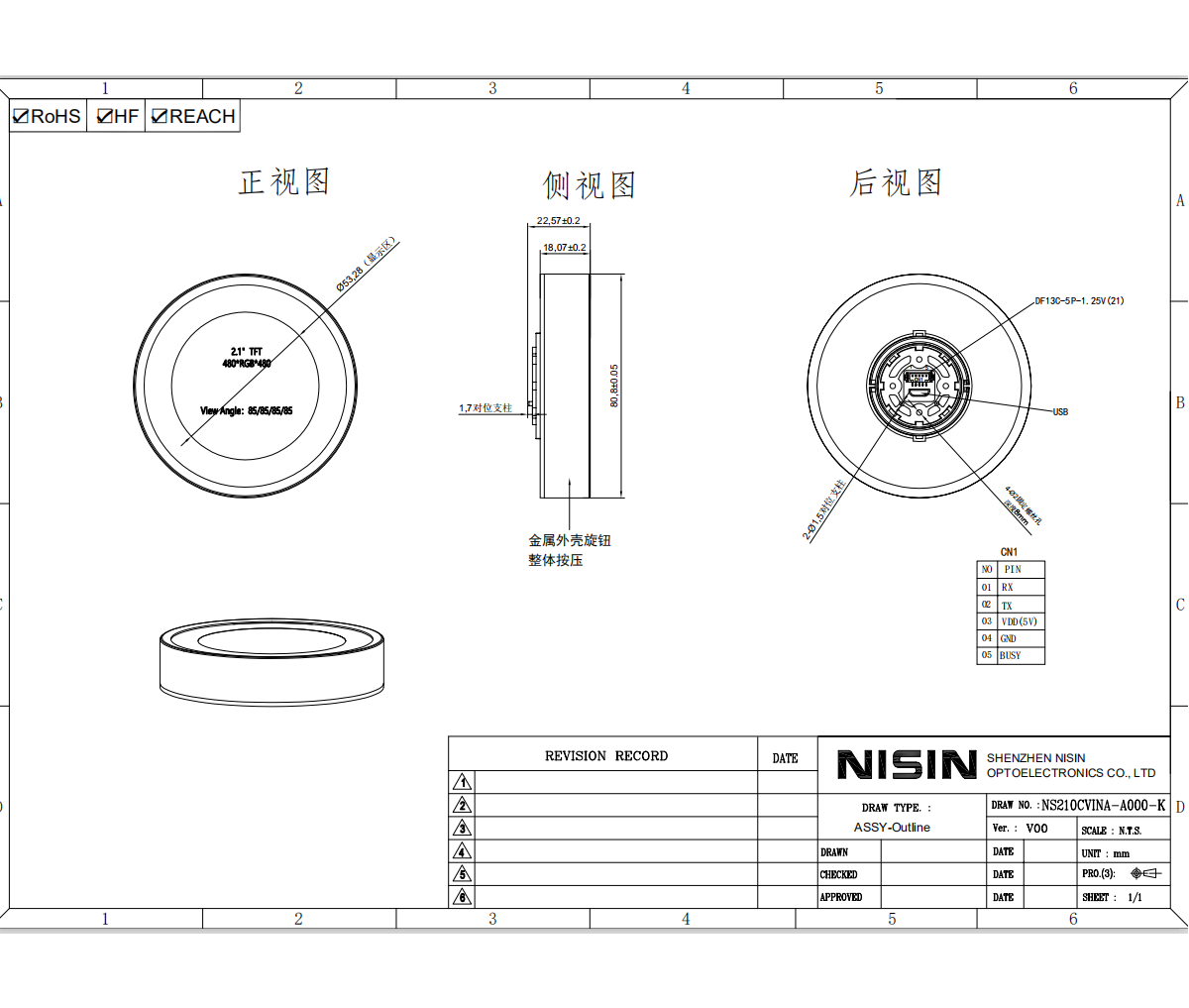

LCM外形尺寸 | LCM Dimensions | 56.18*59.71*2.26(mm) | |
显示点间距 | Dot Pitch | 0.111 * 0.111(mm) | |
显示色彩 | Color | 16.7M | |
对比度 | Contrast Ratio | 800:01:00 | |
响应时间 | Response Time | 35ms | |
模组亮度 | Brightness | 820cd/m² | |
产品类型 | Product Type | TFT | |
显示类型 | Display Type | Normal Black | |
视角 | View Angle | IPS | |
功能选择 | Feature Selection | 旋钮+按压 | |
工作温度 | Operating Temperature | -20℃~+70℃ | |
储存温度 | Storage Temperature | -30℃~+80℃ | |
是否支持定制 | Customization | Yes |
